Swagger 是一个规范且完整的框架,用于生成、描述、调用和可视化 RESTful 风格的 Web 服务。
当通过 Swagger 进行正确定义,用户可以理解远程服务并使用最少实现逻辑与远程服务进行交互。
支持 API 自动生成同步的在线文档。使用 Swagger 后可以直接通过代码生成文档,不再需要自己手动编写接口文档了,对程序员来说非常友好,可以节约写文档的时间。
提供 Web 页面在线测试 API。光有文档还不够,Swagger 生成的文档还支持在线测试。参数和格式都定好了,直接在界面上输入参数对应的值即可在线测试接口。
Swag 能将 Go 的注释转换为 Swagger 文档。
1
2
3
4
|
# 安装swag
go get github.com/swaggo/swag/cmd/swag

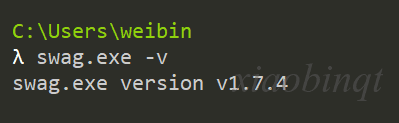

# 查看版本
swag -v
|
从 swagger-ui
库下载 dist
文件夹到自己的项目中,并更名为 swagger(更名不是必须的)。

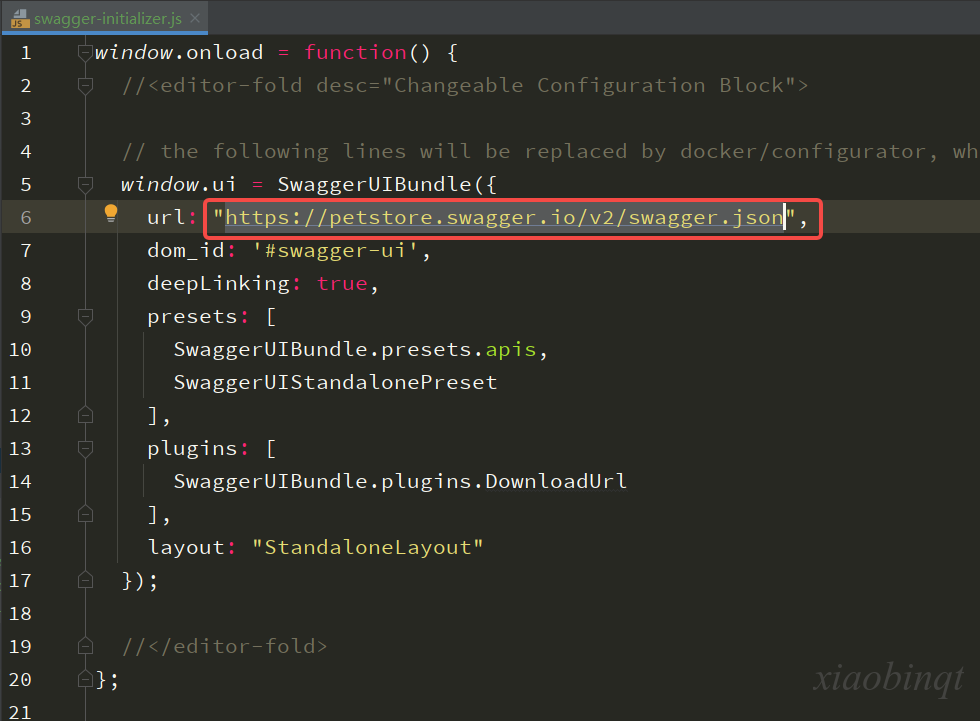

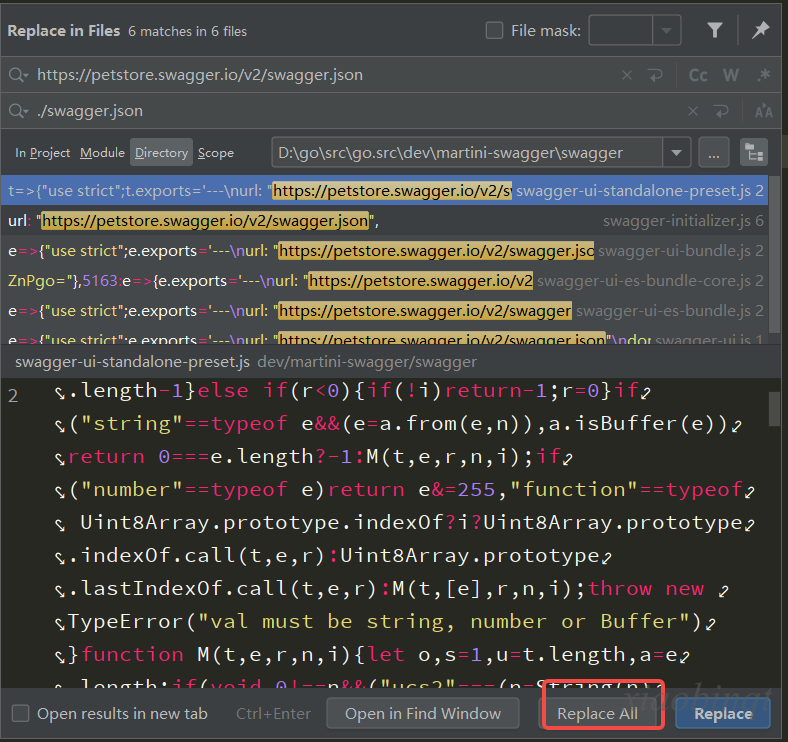

把 swagger 中的 swagger-initializer.js 文件中有个 url 参数,全局替换 swagger 文件夹中的这个 url 参数值为 ./swagger.json
。
swagger 是以注释的方式描述的,然后使用 swag cli 生成的文档。
比如我有一个 main.go 文件,文件内容如下:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
|
package main
import (
"embed"
"net/http"
"github.com/go-martini/martini"
)
//go:embed swagger
var embededFiles embed.FS
// @title 测试 API
// @version 4.0
// @description 测试 API V4.0
// @securityDefinitions.apiKey MyApiKey
// @in header
// @name Xiaobinqt-Api-Key
// @BasePath /
func main() {
m := martini.Classic()
m.Get("/swagger/**", http.FileServer(http.FS(embededFiles)).ServeHTTP)
m.Post("/api/login", Login)
m.Run()
}
type Req struct {
Email string `json:"email"` // 邮箱
Password string `json:"password"`
}
// @Tags 用户管理
// @Summary 用户登录
// @Security MyApiKey
// @accept application/json
// @Produce application/json
// @Param data body Req true "email: 用户名,password: 密码"
// @Success 200 {object} EdgeInstanceList
// @Router /api/login [POST]
func Login(w http.ResponseWriter, r *http.Request) {
w.Write([]byte("hello"))
}
type EdgeInstanceList struct {
A string
B string
}
|

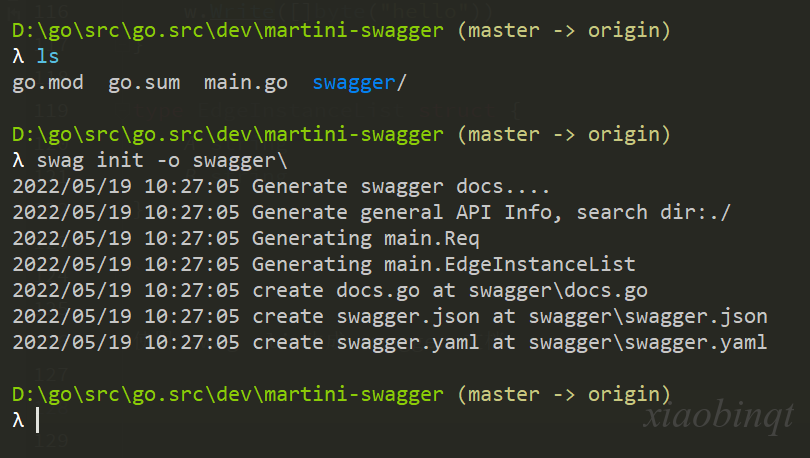

使用 swag cli 生成 swagger 文档:

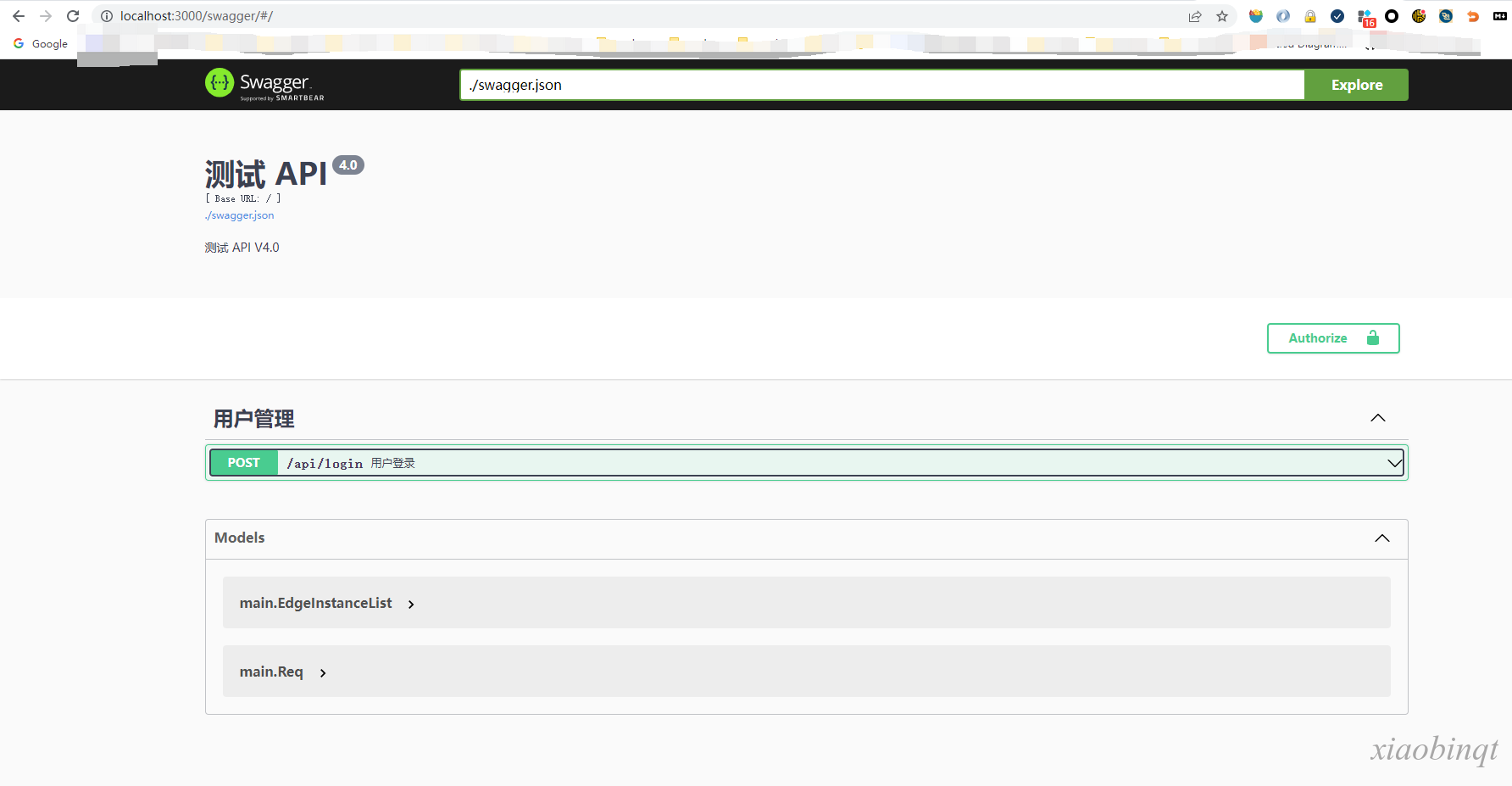

访问 swagger 路由:
有的 api 需要加上 header 头信息才能正确访问,这时可以添加注释信息:
1
2
3
|
// @securityDefinitions.apiKey MyApiKey
// @in header
// @name Xiaobinqt-Api-Key
|
@in header
设置,在请求 header 中,@name Xiaobinqt-Api-Key
header 字段为Xiaobinqt-Api-Key
,@securityDefinitions.apiKey
固定写法,MyApiKey
在每个方法中的@Security
注释信息值,如:
1
2
3
4
5
6
7
8
9
10
11
|
// @Tags 用户管理
// @Summary 用户登录
// @Security MyApiKey
// @accept application/json
// @Produce application/json
// @Param data body Req true "email: 用户名,password: 密码"
// @Success 200 {object} EdgeInstanceList
// @Router /api/login [POST]
func Login(w http.ResponseWriter, r *http.Request) {
w.Write([]byte("hello"))
}
|

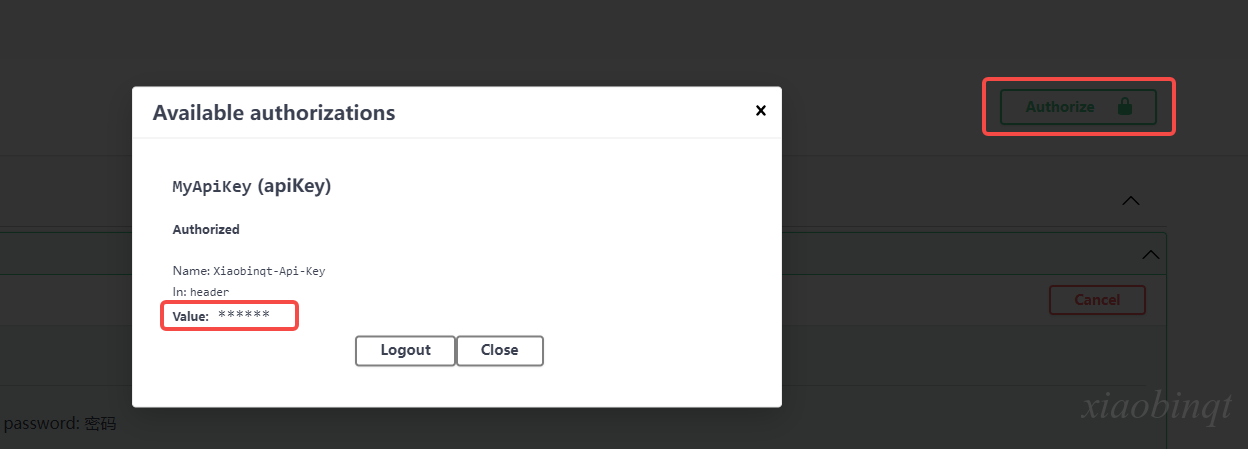

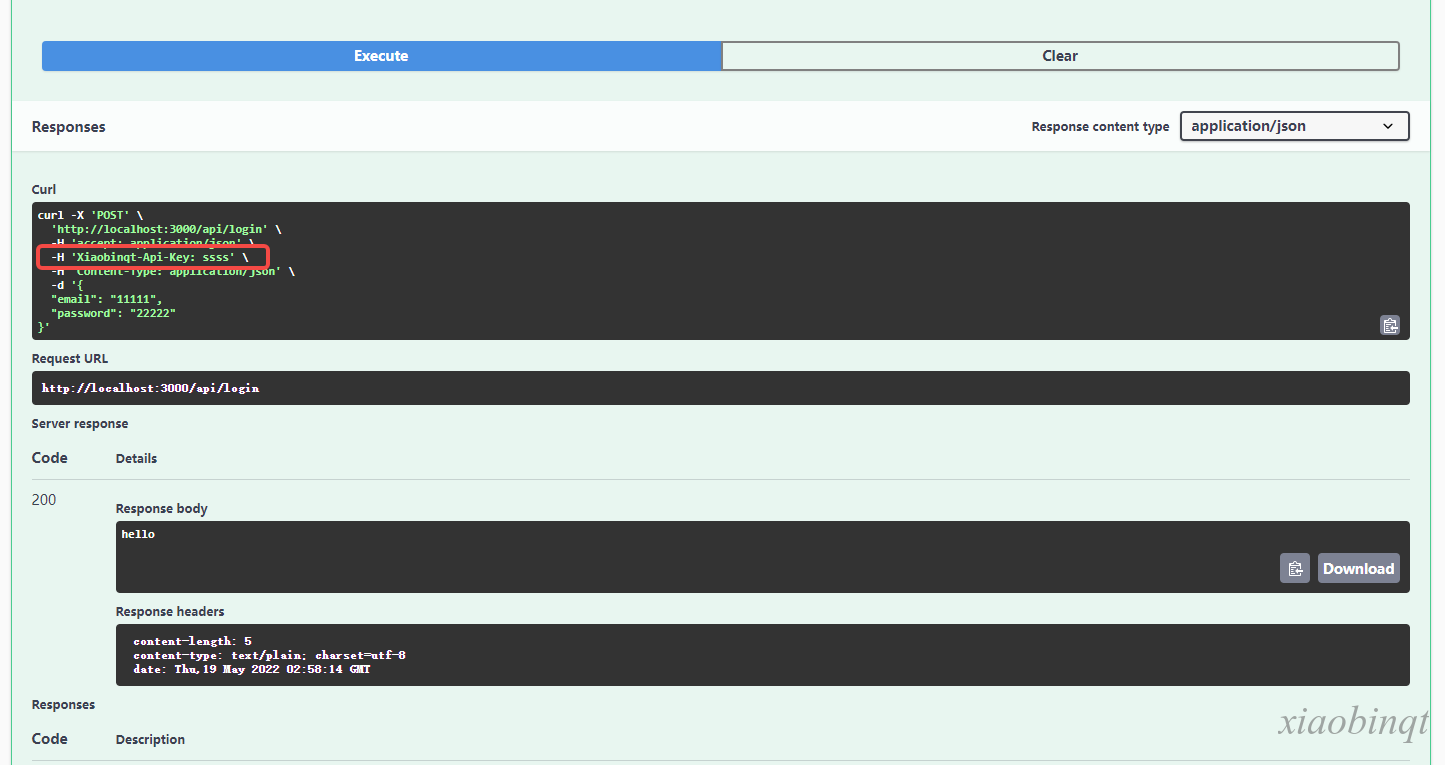

如果在 swagger 页面 Available authorizations 的值不为空,那么每次请求都会带着Xiaobinqt-Api-Key
这个 header 头,值就是Available authorizations
填入的值。
具体可以参看:https://swagger.io/docs/specification/describing-parameters/
1
2
3
4
5
6
7
|
type Req struct {
Email string `json:"email"` // 邮箱
Password string `json:"password"`
}
// @Param data body Req true "email: 用户名,password: 密码"
|
1
|
// @Param user_id path string true "用户ID"
|
1
|
// @Param search query string false "搜索内容"
|

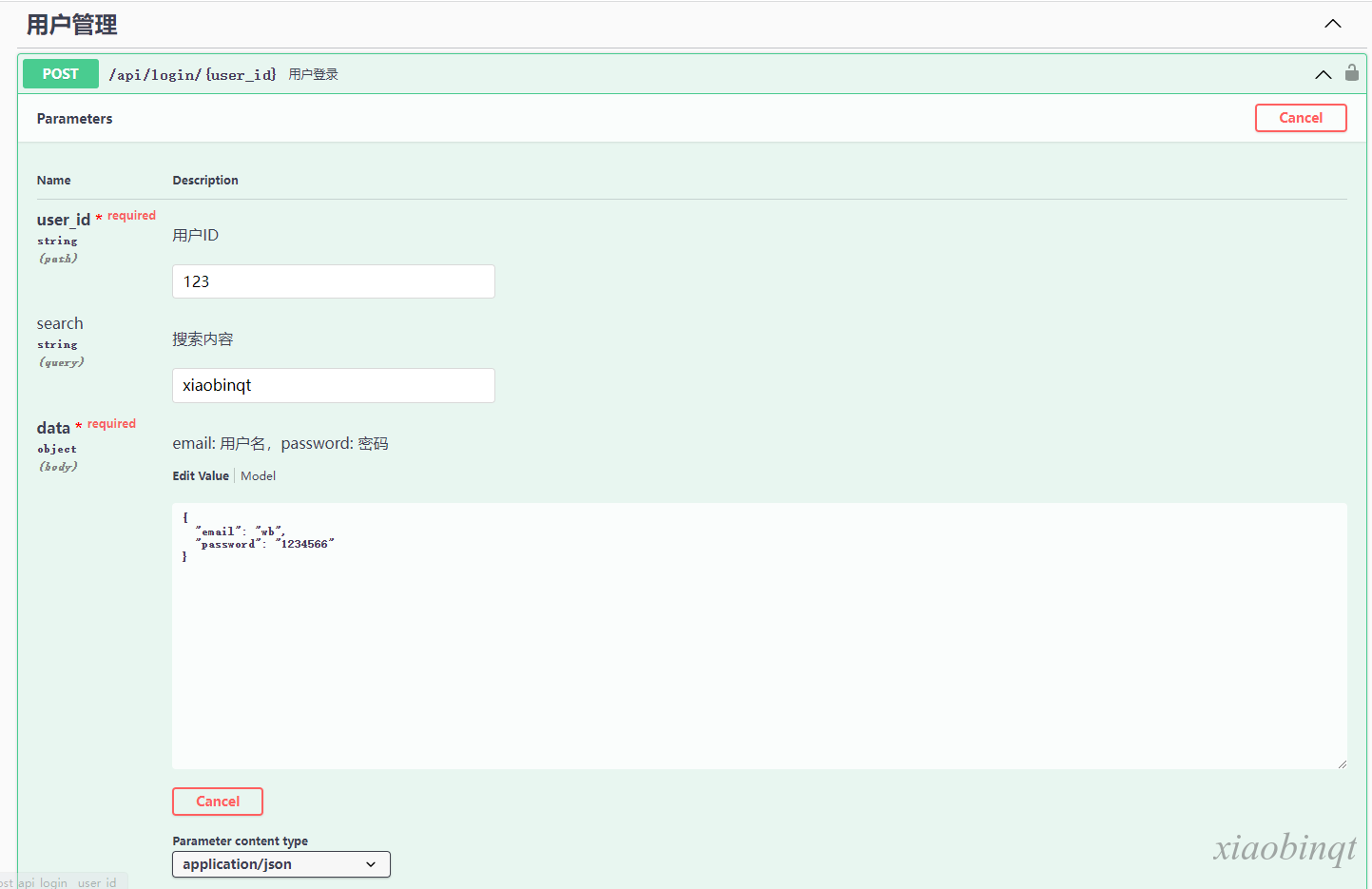

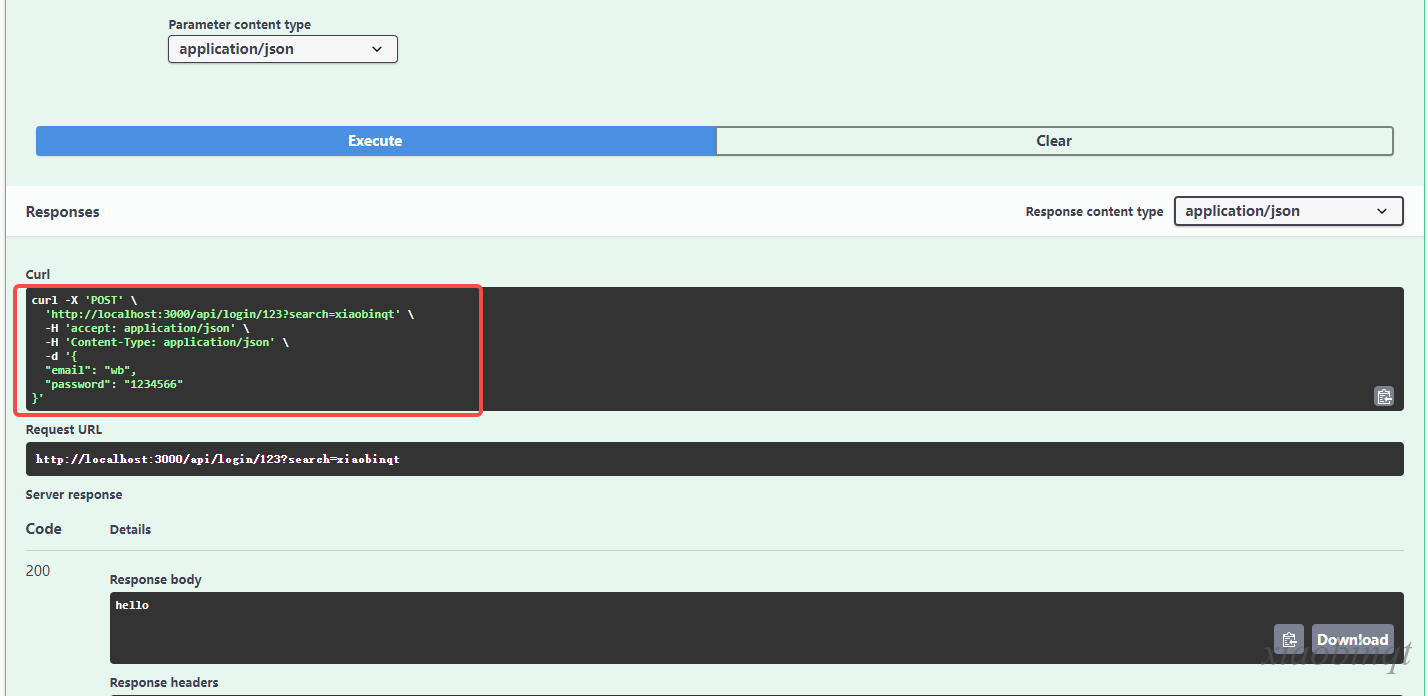

完整注释如下:
1
2
3
4
5
6
7
8
9
10
11
12
13
|
// @Tags 用户管理
// @Summary 用户登录
// @Security MyApiKey
// @accept application/json
// @Produce application/json
// @Param user_id path string true "用户ID"
// @Param search query string false "搜索内容"
// @Param data body Req true "email: 用户名,password: 密码"
// @Success 200 {object} EdgeInstanceList
// @Router /api/login/{user_id} [POST]
func Login(w http.ResponseWriter, r *http.Request) {
w.Write([]byte("hello"))
}
|
